Click on images to see them in full screen

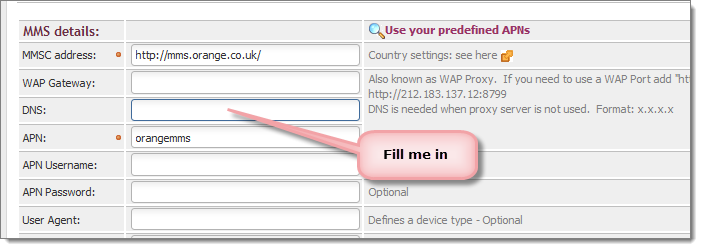

When you set an MMS line (MM1 protocol), and the APN used does not require a proxy, a DNS server address is required to be filled in the form.

To obtain the DNS Server address follow these steps:

  1. Define your modems
  2. Let smsLINES load and create your dial up networking connections (DUN)
  3. Shut smsLINES by typing "tell smslines q" t the server console
  4. Open the DUNs and Connect
  5. Open a command line window and type c:\>ipconfig /all

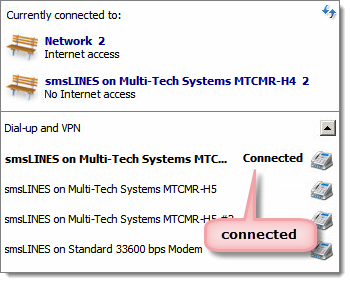

Connect a DUN

You should see this:

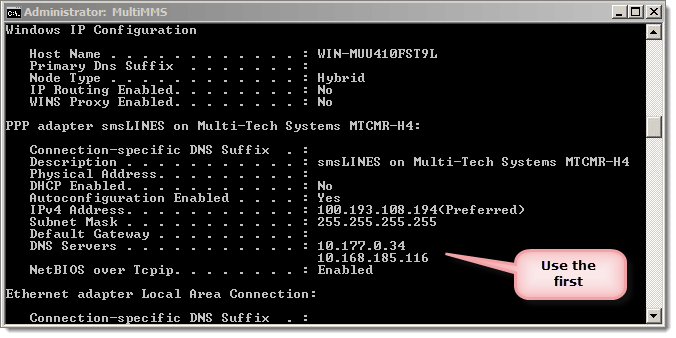

Open a command prompt, issue the "ipconfig /all" command and locate the modem line you are setting up:
