Comms Lines - GSM

smsPULSE MM employs Communication Lines documents to control the lines which are active on your server. Please note that the HTTPS channel does not require a Communication Line document and is "built-in" to smsPULSE.

Future releases of smsPULSE will include new types of Communication Lines.

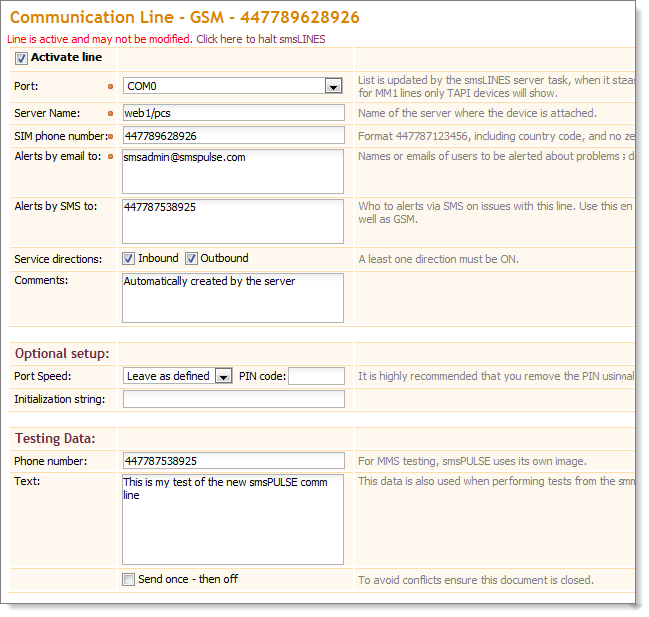

A sample Communication Line document:

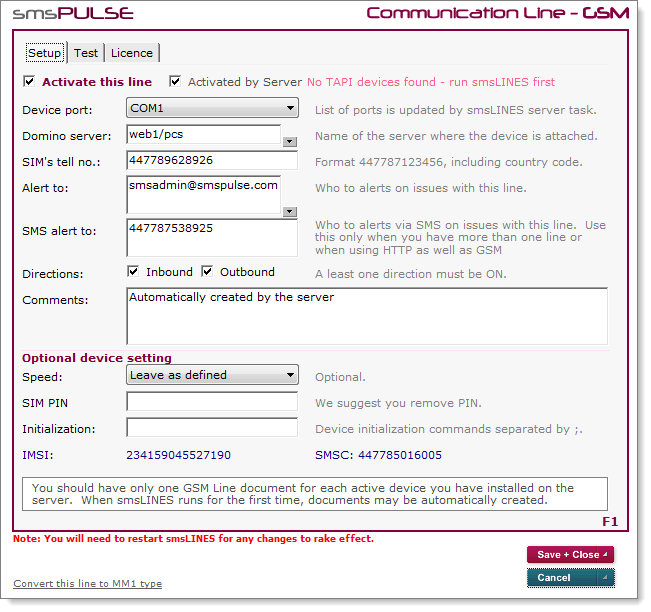

Web UI:

Echo
From version 7.6.2 you can ask smsPULSE to send you a text message for every text message that comes in. This is useful during test or pilot times and we recommend that you turn these features off once you are in production mode.

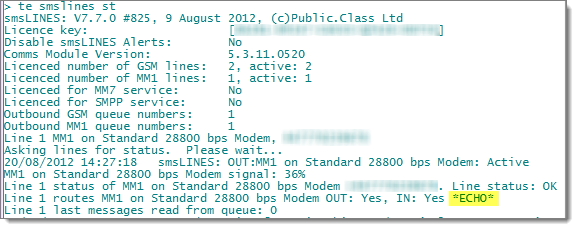

When Echo is ON and you check the status of smsLINES, the following confirms the feature:

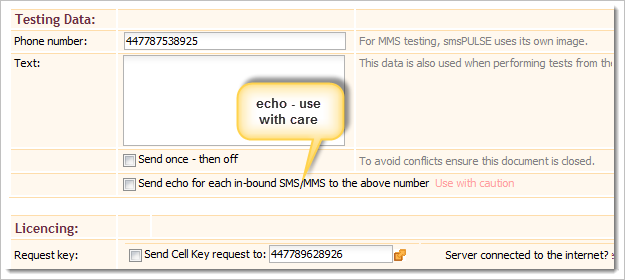

Notes UI:


Testing a line

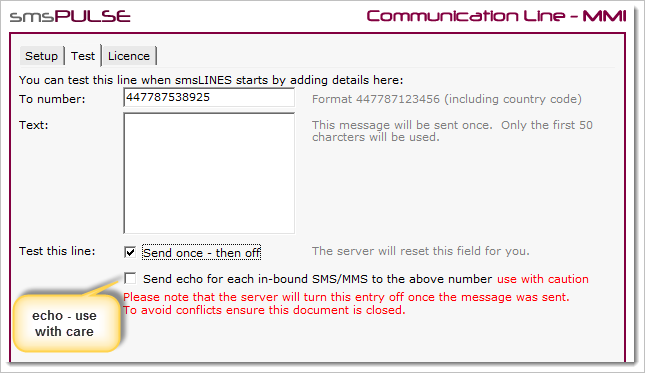

Once the server is connected to a line you may test it. To do so click on the Test tab and fill in the details, not forgetting to tick the "Send once..." checkbox:


You may also test a line after the above form is filled by typing the following command on the Domino console:
"tell smslines test n" (where n is the line number).
Please note that if you added the number after smsLINES has loaded you will need to restart smsLINES for the number to be read. To restart smsLINES just type:
"tell smslines restart"

Licensing a line
If you bought an smsPULSE DM license or an smsPULSE MM license you will need to license each line you have purchased. For instructions please click here Database 'sms.HELP', View 'Help Documents', Document 'Cell Key File V4'.
